- Place of Origin: Hubei, China (Mainland)
- Brand Name: three-dimensional
- Model Number: Alumina
Product Description:

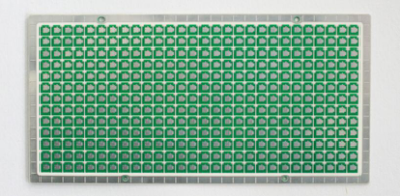

Ceramic circuit board has good thermal and electrical properties, is an excellent power LED packaging materials, especially for multi-chip (MCM) and the substrate directly bonded chip (COB) and other packaging structure; also can be used as other high-power Power semiconductor module of the cooling circuit substrate.
Advantage:
(1) higher thermal conductivity and a more matched coefficient of thermal expansion;
(2) a more rigid, lower resistance conductive metal film;
(3) substrate solderability and good resistance to welding, the use of a wide temperature range;
(4) good insulation;
(5) conductive layer thickness of 1μm ~ 1mm adjustable;
(6) high-frequency loss, can be high-frequency circuit design and assembly;
(7) High-density assembly, line / space (L / S) resolution up to 20μm, in order to achieve the equipment is short, small, light, thin;
(8) does not contain organic ingredients, resistant to cosmic rays, high reliability in aviation and aerospace, long service life;
(9) copper layer does not contain oxide layer, can be reductive atmosphere in the long-term use.
(10) three-dimensional substrate, three-dimensional wiring.
The main parameters of products
Thermal conductivity
Thermal Conductivity of Alumina Ceramics (15 ~ 35 W / m.k)
Thermal Conductivity of Aluminum Nitride Ceramics (170-230 W / m.k)
Binding force
Up to 45MPa
Thermal expansion coefficient
With the commonly used LED chip to match
Weldability
Can be repeated at 260 ℃ welding, and in the -20 ~ 80 ℃ long-term use;
Insulation
Breakdown voltage up to 20KV / mm
Conductive layer thickness
1μm ~ 1mm adjustable
High frequency loss
Small, can be high-frequency circuit design and assembly
Line / space (L / S) resolution
Up to 20μm
Organic ingredients
Does not contain organic ingredients, resistant to cosmic rays
Oxide layer
No oxidation layer, can be reductive atmosphere for long-term use
